รายละเอียดสินค้า:
การชำระเงิน:
|
| Material:: | Hot Dipped Galvanized Steel | Thickness:: | 0.7-1.4mm |
|---|---|---|---|
| Effective Width:: | 688mm | Standard:: | ASTM, JIS, GB |
| Model Type:: | Open Mouth | Grade:: | Q235 Q345 Q410 |
| แสงสูง: | metal decking profiles,structural metal decks |
||

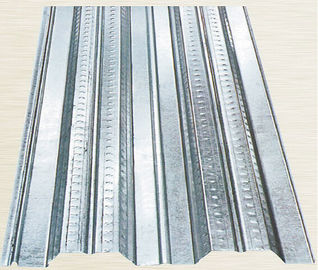

Simple Galvanized Corrugated Roof Panels For Steel Warehouse Floor
Quick Detail:
Item: Metal Decking Sheet

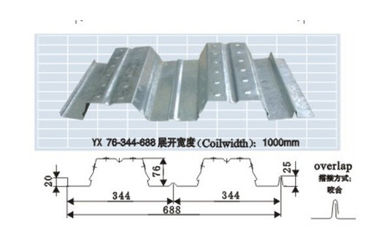

Model: 76-344-688
Available thickness: 0.7-1.4mm
Material: hot dipped galvanized steel or Zincalume sheet
Zinc coating: 60-275g/m2
Steel grade: Q235, Q345
Description&Application:
Our decking sheets, which have been cold rolled into various wave patterns from galvanized sheet or zincalume sheet.
are application for industrial and civil buildings, warehouses, special buildings, large-span houses, wall surfaces and interior & exterior wall decorations etc
Main features:
1. Light in weight, high intensity, huge loading capacity as well as good anti-earthquake capability;
2. Simple in construction operation, easy to assemble;
3. Take the place of conventional templates and eliminate the disadvantage of the traditional one;
4. Act as a part of the whole structure, to reduce the cost of material;
5. Easy to reinforcement, wiring, piping etc.
Specifications:
|
Sheet thickness (mm) |
Sheet weight (kg/m2) |
Moment of Inertia (cm4/m) |
Positive Resistance (cm3/m) |
|
0.80 |
8.59 |
86.00 |
15.52 |
|
0.90 |
9.66 |
106.00 |
18.62 |
|
1.00 |
10.74 |
118.00 |
20.69 |
|
1.20 |
12.89 |
150.20 |
24.82 |
Competitive Advantage:
1. Excellent fire performance
The ribs of slab are completely encased in concrete, just like the cast-in reinforcement. Closed built-up slabs can completely replace the positive
moment tensile reinforcement in the floor slabs, and an 1.5-hour refractory power can be achieved without need to brush fire-resistant coating
2. Simple, rapid construction
It does not require any plug, with no leakage of mortar, available to shorten the construction cycle.
3. Low cost
The reinforcements bearing the positive moment of the closed built-up slabs are replaced by the profiled steel plates, without need to brush fire-resistant coating,
thus reducing the usage of reinforcements and cutting down the costs.
Corrugated Roofing Sheet, Corrugated Steel Roofing Sheet, Corrugated Roofing Tile,Galvanized Corrugated Steel Sheet
Product Description
The thickness ranges from 0.7mm to 1.4mm, and the material can be Q235, Q345, Q410
as for the steel floor deckings, we have three kinds:
1.basic type
2.dovail-type steel deckings
3.closed type deckings
