MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers

MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers
MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers

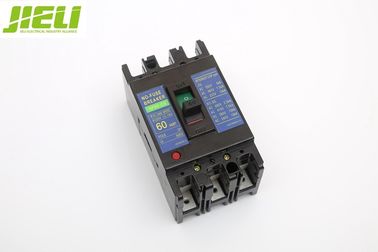

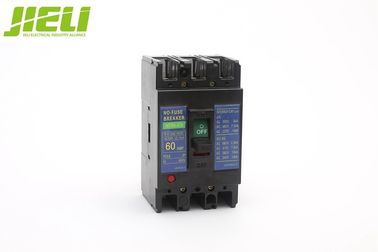

ภาพใหญ่ :  MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers

รายละเอียดสินค้า:
Place of Origin: Zhejiang,China(Mainland)
ชื่อแบรนด์: JIELI
ได้รับการรับรอง: CE/ISO9001/CB/TUV
Model Number: JM11
การชำระเงิน:
Minimum Order Quantity: 500pieces
ราคา: Negotiable
Packaging Details: Standard export carton or according to your request.
Delivery Time: Within 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,CASH
Supply Ability: 100000pieces per month.
รายละเอียดสินค้า
แสงสูง:

electric circuit breaker

,

low voltage circuit breaker



MCCB Moulded Case 3 Pole Circuit Breakers Low Voltage , Industrial Circuit Breakers





Quick Detail:



Place of Origin: Zhejiang China (Mainland)

Brand Name: JIELI

Model Number: JM11

Type: Moulded Case Circuit Breaker

Poles Number:3

Rated frequence:50/60HZ

Mechanical life:8500 times

Deposit:30% deposit

Certificate: CE,BV

Guarantee period:5 years

OEM: Available

Quality: Stable and reliable





Description:



JM11 series MCCB moulded case circuit breaker is suitable for industrial or commercial power and

lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

JM11 series moulded case circuit breaker is a kind of economical breaker with the characters of

stable and reliable function, beautiful appearance, small size and long life.

JM11 series moulded case circuit breaker can be used for conversion of line and infrequent

starting motor.

JM11 series moulded case circuit breaker can also be attached to install the accessories which

have protection function for avoiding loss-voltage, under voltage.

JM11 series moulded case circuit breaker can install connection line with front board and back board.

JM11 series moulded case circuit breaker also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.





Specifications:



TYPE

JM11

RATED CURRENT OF FRAME SIZE   INM(A)

63

RATED CURRENT IN(A)

10,16,20,25,32,40,50,63

RATED OPERATION   VOLTAGE UE(V)

AC400

RATED INSULATION VOLTAGE UI(V)

AC500

NUMBER OF POLES

3

3

4

LEVEL OF RATED ULTIMATE SHORT CIRCUIT BREAKING   CAPACITY

S

H

RATED ULTIMATE SHORT   CIRCUIT BREAKING CAPACITY ICU(KA)

AC690V





AC400V

25

50

RATED SERICE SHORT   CIRCUIT BREAKING CAPACITY ICS(KA)

AC690V





AC400V

18

35

OPERATION LIFE WITH CURRENT

4500

OPERATION LIFE WITHOUT CURRENT

8500

SIZE

L

135

W

78

103

H

73.5

81.5

ARCING DISTANCE(MM)

0,≤50



Our service:







1. Samples: provide free samples.

2. Package: all products will be well packed before shipping.

3. Warranty: all products have 2-5 years warranty.

4. Delivery: within 30days after received the deposit.

5. Provide OEM and ODM service.

6. We can help you with any of your idea to design and put it into production.

7. Provide help for building factories, such as: spare parts, technical questions,

financial matter, management problem , approach of sales...
