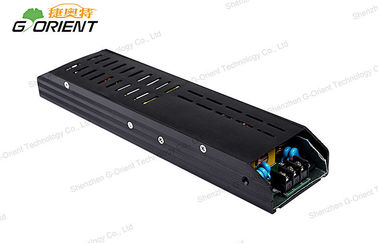

Isolated Switch Power Supply 200W 5V / 40A with High Power Factor 0.95

Isolated Switch Power Supply 200W 5V / 40A with High Power Factor 0.95
Isolated Switch Power Supply 200W 5V / 40A with High Power Factor 0.95

ภาพใหญ่ :  Isolated Switch Power Supply 200W 5V / 40A with High Power Factor 0.95

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: G-ORIENT
ได้รับการรับรอง: ISO9001 / CE / ROHS / FCC
Model Number: NHP200-5-A
การชำระเงิน:
Minimum Order Quantity: 10pcs
ราคา: negotiable
Packaging Details: 20pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
รายละเอียดสินค้า
Input: 100-240Vac Output: 5V DC / 40A
Output power: 200W Size: 212*58*29mm
High efficiency: 90% Power factor: >0.95
แสงสูง:

high power switching power supply

,

single output switching power supply





Isolated Switch Power Supply 200W 5V / 40A with High Power Factor 0.95





Features:

* Synchronous rectification,high power factor>0.95

* High efficiency up to 90%

* Low output ripple and noise,high reliability

* With over-current/over-voltage/short-circuit/over-power protection

* Ultra-low start up temperature -40℃

* 2 years warranty





Specifications:

Switching power supply

 NHP200-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~40A

Rated Current

 40A

Rated Power

 200W

Ripple & Noise(max.)

 <200mVp-p

Regulation

 ≦+/-3%

Leakage current

 ≦3.5mA

 INPUT

Voltage Range

 100-240V AC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 90%

 Environment

Storage Temperature

 -40 ~ +85℃

Operaing Temperature

 -40 ~ +80℃

Relative Humidity

 10%-95%

Cooling

 Natural convection

 Safety

Safety standards

 CE

 Withstand Voltage

Input-output withstand vol.

 3000Vac/10mA/1min

Input-FG withstand vol.

 1500Vac/10mA/1min

Output-FG withstand vol.

 500Vac/10mA/1min

 Others

Dimension

 212*58*29mm (L*W*H)

Packing









Competitive Advantage:

* Ultra-thin 30mm

* Ultra-low start up temp.(- 30℃)

* synchonous rectification

* High efficiency up to 85%

* CE / ROHS / FCC approval

* Small size,ultra-light and easy to install

* Protections:Short circuit / Overload / Over voltage / Over temperature





Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process





Applications:

1. Electrical equipment, Instrumentation;

2. Digital and electronic products;

3. Advisement player

4. LED display,LCD TV, LED TV

5. Display screen,LED video wall

6. Communications and security products.
