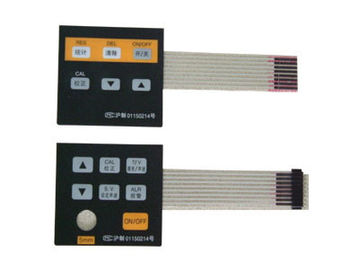

Matrix 3M467 / 3M468 Adhesive PCB Custom Membrane Switches For GPS

Matrix 3M467 / 3M468 Adhesive PCB Custom Membrane Switches For GPS
Matrix 3M467 / 3M468 Adhesive PCB Custom Membrane Switches For GPS Matrix 3M467 / 3M468 Adhesive PCB Custom Membrane Switches For GPS

ภาพใหญ่ :  Matrix 3M467 / 3M468 Adhesive PCB Custom Membrane Switches For GPS

รายละเอียดสินค้า:

Place of Origin: Dongguan,China
ชื่อแบรนด์: Foundation
ได้รับการรับรอง: ISO9001:2008, SGS,Rohs
Model Number: HC-MS-422

การชำระเงิน:

Minimum Order Quantity: 150Pcs
ราคา: Negotiable
Packaging Details: Polybag per pcs,50pcs cartoon
Delivery Time: 15-20days
Payment Terms: T/T,L/C
Supply Ability: 100000piece/pieces per Month
รายละเอียดสินค้า
Material: F200 Adhesive: 3M
Color: White and black
แสงสูง:

Membrane Switch Panel

,

Custom Membrane Switch

Matrix 3M467 / 3M468 Adhesive PCB Custom Membrane Switches For GPS







Description:


1) Membrane Switch with windows

2) Silicone keypad

3) Silk Screen Printing

4)perfect exterior

5) Over 1 million life cycles





Material : PET /PC
Adhesive: 3M467 & 3M468 or as per request
High life time :>1million times

Pass:ISO9001:2008 RoHS.SGS
High quality







Specifications:



wire lead resistance: <1Ω/CM Life time: >1 Million times
rated current: 25-100mA,0~30V DC Operation Temperature: -40℃~70℃
Rated Voltage: <50V, DC Operation Humidity: at40℃,<98%RH
Insulation resistance: <100MΩ,250V DC Dome springback time: <5 msec
Switch travel: Flat Type 0.05-0.3mm Base Material voltage withstand: 1500 V DC
tactile type:0.3-1.5mm Tail flexiblility: any angle within 180 degree





Company Advantage:



  1. Top managers are experienced in the same field for many years.
  2. Professional staff and workers.
  3. Strong R&D cabability
  4. Quick Delivery
  5. Competitive price
  6. Two factories are available for large orders
  7. Expert sales team and good customer service.





Commercial terms:



MOQ: 150pcs

Payment Terms: T/T or L/C

Mold Charge: 100% in Advance

Sample Time: 9-10 days after drawing approval.

Lead Time for production: 15-22 days after sample approval





Applications:



Our membrane switches are widely used in:

  • Medical Equipment
  • Telecommunications apparatus
  • Telephone systems
  • Household appliances
  • Security systems
  • Industrial controls
